This HDBaseT DVI over CAT5e/6/7 transmitter and receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The transmitter can power the receiver, via the PoE function, eliminating the need for a separate power supply providing greater flexibility in installations.

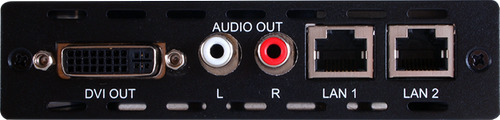

(CDVI-1109RXC, PU-DVI1109RX)

(PU-DVI1109RX)

Specification
  • Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
  • Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
  • Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
  • Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
  • Supports bi-directional IR control and RS-232 pass-through
  • Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
  • Single power supply powers both units, Receiver unit is powered through the Transmitter via PoE
  • Installation friendly

SKU CDVI-1109RXC
Model # CDVI-1109RXC
CYP EU Model # PU-DVI1109RX
Brand Cypress
Shipping Weight 0.5580kg
