CH-101 - HDMI Repeater - Cypress RE-101

This is the most advanced solution for HDMI to HDMI signal repeater. This is compatible with HDMI specifications, a cutting-edge technology which defines the supports to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225 MHz. The HDMI Distribution Amplifier also does amplifies signal and equalization, so as to provide high performance I/O of audio and video through HDMI cables for a distance up to 15 meters each side at 1080p@60 Hz.

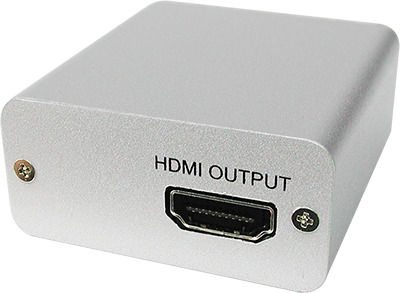

(CH-101, RE-101)

(RE-101)

Specification

HDMI, HDCP 1.1 and DVI1.1 compliant
Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio
Supports equalize and recover incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal quality
Supports high definition input up to 1080p@60Hz, output resolution follows input
Full HDCP compliant
HDMI cable distance tested with 1080p/8bits resolution the I/O source can run up to 15/10 meters. If 1080p/12bits the I/O source can run up to 10/10 meters
Supports CEC function
Easy to install and simple to operate

Inputs	1x HDMI [1x Uncompressed AV and Data]
Outputs	1x HDMI [1x Uncompressed AV and Data]
PSU:	5V/2.6A
Dimensions	50mm [W] x 52mm [D] x 23mm [H]
Net Weight	62g
