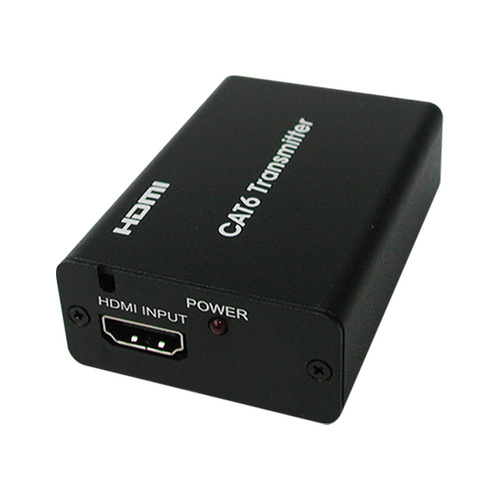

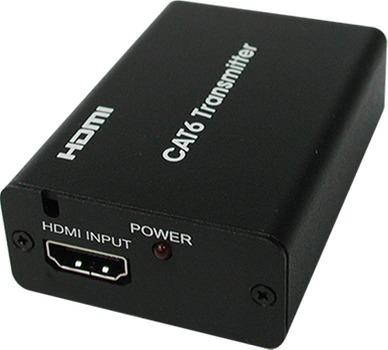

​This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI specifications, a cutting-age technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. The installation of HDMI to CAT6 is easy and quick, simply place transmitter side next to your HDTV source such as a DVD player, then place the receiver side next to your CAT 6 to CAT6 repeater unit and get all necessary cables connected and enjoy.

(CH-1103Tx, )

()

Specification
  • Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards
  • Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color)
  • Supports lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
  • Supports CAT-6 cables for data/DDC transmission
  • Supports equalize and recover incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal quality
  • Supports high definition resolution
  • The cable distance test with 1080p/8bits resolution the Input/Output source can run up to 30/45 meters
  • The cable distance test with 1080p/12bits resolution the Input/Output source can run up to 15/15 meters
  • Without power supply (Need to connect with our HDMI series product, otherwise this feature will not guarantee)
  • Support CEC bypass
  • Support xvYCC

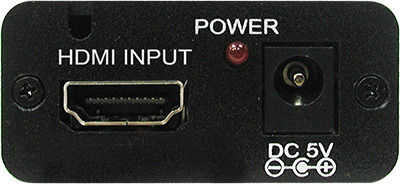

Inputs
1x HDMI [1x Uncompressed AV and Data]

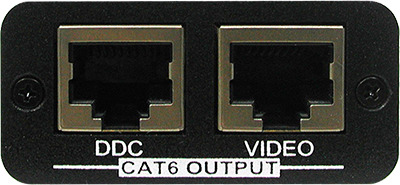

Outputs
2x RJ-45 [1x HDMI & Propriety Data]
PSU:
5V/2.6A
Dimensions
50mm [W] x 62mm [D] x 23mm [H]
Net Weight
90g

SKU CH-1103Tx
Model # CH-1103TX
Brand Cypress
Shipping Weight 0.1500kg
