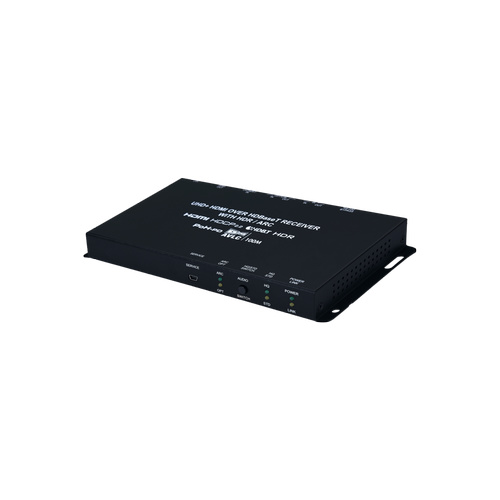

CH-1605RXV - 4K HDR HDMI over HDBaseT Receiver with IR, RS-232, PoH (PD), LAN & ARC

This HDBaseT 2.0 Receiver provides for the reception of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be received and processed by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. This receiver can also pass RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal.
The selectable Audio Return Channel (ARC)/bi-directional optical audio feature allows audio generated by an ARC-enabled TV to be to be sent back to the Transmitter and output over the optical output for local playback, or for optical audio to be exchanged bi-directionally between the Transmitter and Receiver. This Receiver is powered directly by the connected Transmitter, via 48V PoH (Power over HDBaseT), eliminating the need for a separate power supply for the Receiver.

(CH-1605RXV, )

()

Specification

Inputs	1x RJ-45 [1x HDMI & Propriety Data] 1x TOSLINK [1x 2 Channel LPCM] 1x 3.5mm [1x Infrared Receiver] 1x RJ-45 [1x LAN Serving] 1x DE-9 [1x BYPASS RS-232 Data] 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x TOSLINK [1x 2 Channel LPCM] 1x 3.5mm [1x Infrared Emitter]
PSU:	PoH 48V
Dimensions	231mm [W] x 115mm [D] x 25mm [H]
Net Weight	654g
