​ This splitter can split and distribute a single HDMI input and 2-way IR control to up to three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three CAT5e/6/7 outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 60 meters with 24V PoC (Power over Cable) feature.

(CHDBT-1H3CPL, PU-1H3HBTPL)

(PU-1H3HBTPL)

Specification
  • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
  • Simultaneous HDMI and CAT5e/6/7 outputs
  • Supports data rate from 250Mbps up to 3Gbps
  • Supports wide range of PC resolutions from VGA to WUXGA(RB) and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz & 50/60 YUV_420 and 4096x2160@24Hz & 50/60 YUV_420)
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32~192kHz sample rate)
  • Supports distances up to 60 meters through CAT5e/6/7 cables
  • Supports selection of Standard or TV EDID settings
  • Supports Power over Cable (PoC) feature
  • Supports USB service port
  • Supports Bidirectional IR control
  • The 3D signal display follow by display TV’s EDID
Inputs
1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm [1x Infrared Receiver]
1x USB Mini-B [1x SERVICE Propriety Data]

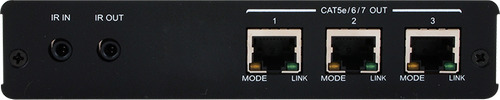

Outputs
1x HDMI [1x Uncompressed AV and Data]
3x RJ-45 [3x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Emitter]
PSU:
24V/2.7A
Dimensions
145mm [W] x 199mm [D] x 30mm [H]
Net Weight
592g

SKU CHDBT-1H3CPL
Model # CHDBT-1H3CPL
CYP EU Model # PU-1H3HBTPL
Brand Cypress
