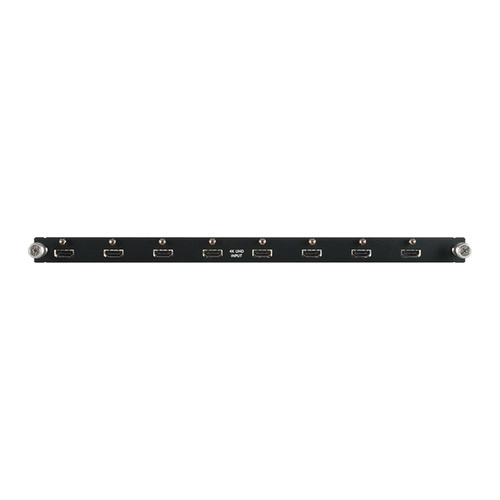

This input module enables the connection of up to 8 HDMI sources to the modular matrix. Resolutions up to 4K@30Hz or WUXGA@60Hz (RB), and 3D signals are supported along with high-definition audio transmission including LPCM 7.1CH, Dolby Digital Plus, Dolby True HD, and DTS Master Audio. HDMI inputs support cable lengths of up to 15m@1080p/8-bit, 10m@1080p/12-bit or 5m@4K.

(CIN-8HS4K, IN-HDMI-4K-8)

(IN-HDMI-4K-8)

Specification

  • ​​Video Bandwidth: 25~340MHz
  • Input Ports: 8 HDMI
  • Supported PC Resolutions: VGA to WUXGA@60(RB)
  • Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
  • Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Supported Audio sampling rate: 32~192kHz

Inputs
8x HDMI [8x Uncompressed AV and Data]

SKU CIN-8HS4K
Model # CIN-8HS4K
CYP EU Model # IN-HDMI-4K-8
Brand Cypress
