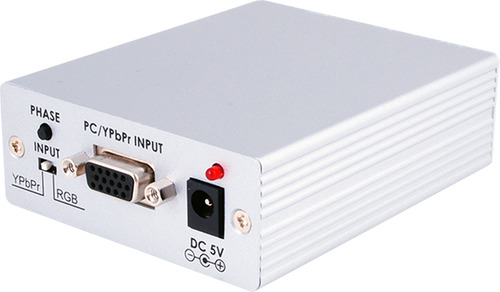

​This unit allows analog PC (RGBHV or YUV) signals to be converted into digital HDMI format with embedding of analog stereo audio at the same time. Connect your analog RGBHV/YUV output from a PC or Component Video source to the HDMI input of the latest HD ready displays. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. The units phase enhancement function allows users to freely adjust phase to stabilize image quality.

(CP-1261HS, )

()

Specification
  • Supports a wide range of YUV resolutions (480i~1080p)
  • Supports analog audio 2CH (48kHz sampling rate)
  • Supports hot plug detection
  • Support YCbCr to RGB color space conversion
  • Supports input format of RGBHV or YPbPr
  • Supports input resolutions up to 1920×1200@60RB for PC and 1080p for HD
  • Supports phase adjustment
Inputs
1x HD-15 [1x RGBHV / YPbPr Component]
2x RCA [1x Stereo (L/R)]
Outputs
1x HDMI [1x Uncompressed AV and Data]
PSU:
5V/1.2A
Dimensions
76mm [W] x 105mm [D] x 30mm [H]
Net Weight
190g

SKU CP-1261HS
Model # CP-1261HS
Brand Cypress
Shipping Weight 0.6000kg
