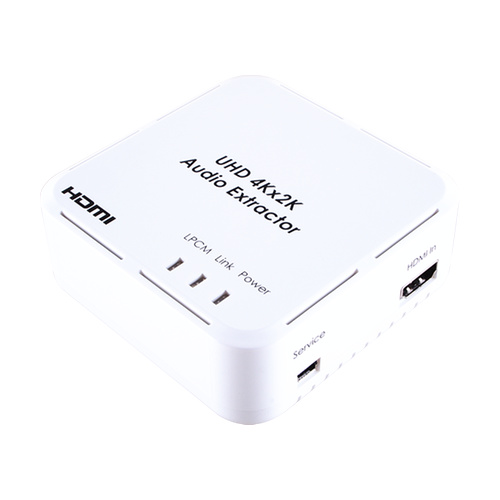

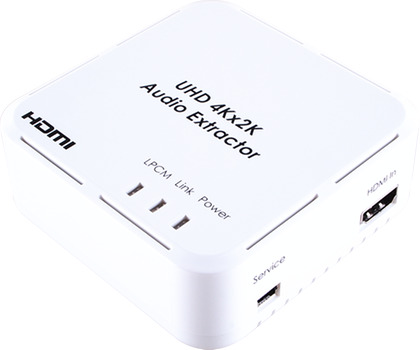

CPRO-11SE2 - 4K UHD HDMI Audio Extractor (LPCM 2.0)

The HDMI ™ 4K×2K Audio Extractor allows you to de-embed the audio signal from an HDMI source. With this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog stereo (L/R) audio, allowing you to output your audio signal to an external audio system or to extend your audio signal pathway. It also has the added benefit of 4K×2K and 3D support, allowing full resolution video and eliminating the need to downscale the image.

(CPRO-11SE2, )

()

Specification

Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI audio sampling rates up to 192 kHz
Supports Optical (S/PDIF) audio sampling rates up to 192 kHz
HDMI supports high-bit-rate (HBR) audio
No HDMI output connection is required for analog or optical audio output
Supports analog stereo (L/R) and Optical digital audio (S/PDIF) outputs
Supports maximum input and output HDMI cable lengths of up to 15 meters each at 1080p/8-bit resolution or 10 meters each at 1080p/12-bit or 4K×2K resolution

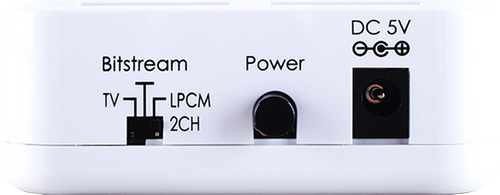

Supports built-in audio EDID switching between LPCM 2CH, TV (external) EDID and Bitstream audio
Supports 4K×2K resolution and 3D signals

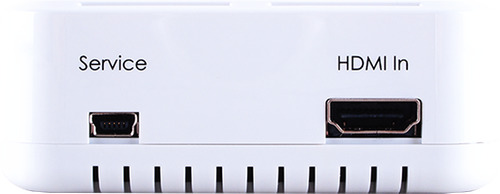

Inputs	1x HDMI [1x Uncompressed AV and Data] 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x TOSLINK [1x OPTICAL 2 Channel LPCM] 1x 3.5mm [1x Stereo(L/R)]
PSU:	5V/1.2A
Dimensions	85mm [W] x 87mm [D] x 34mm [H]
Net Weight	102g
