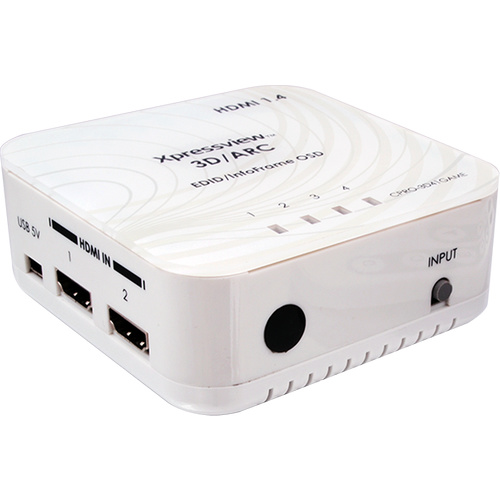

This 4×1 HDMI Switcher is a high performance four-input and one-output High-Definition Multimedia Interface (HDMI) switcher with Audio Channel Return (ARC) and HDCP repeater functions along with fast switching between HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Color. The included remote control gives users complete control over the selection of sources and makes the device incredibly user friendly.

(CPRO-3D41GAME, )

()

Specification
  • ​Support multiplexed HDMI 4-input and 1-output
  • HDMI, HDCP 1.4 and CEC1.4 compliant
  • HDMI support:
    - Audio Return Channel (ARC)
    - 3D TV support
    - CEC 1.4
  • Fast switching on all HDMI input ports
  • Character and icon based On-Screen Display (OSD)
    - System information for Software version
    - Sink EDID
    - Source info frame
    - HDMI input Audio & Audio Return selection
  • HDCP repeater support
  • Deep Color support 36/30/24-bit, 1080p@60Hz
  • Supports high resolution input and output:
    - PC: VGA to WUXGA
    - HDTV: 480i to 1080p@50/60 Hz, 1080p@24 Hz
  • Supports HDMI input cable lengths of up to 10 meters (8/12-bit) and HDMI output cable lengths of up to 15 meters (8/12-bit)
  • Audio support:
    - HDMI compatible audio interface
    - Dedicated, flexible audio input/output port
    - Dolby TrueHD
    - DTS-HD Master Audio 7.1CH
    - Full audio input and output support
Inputs
4x HDMI [4x Uncompressed AV and Data]
1x USB Mini-B [1x USB Power]
Outputs
1x HDMI [1x Uncompressed AV and Data]
1x RCA [1x COAX 2 Channel LPCM]
PSU:
5V/1A,USB powered
Dimensions
100mm [W] x 70mm [D] x 20mm [H]
Net Weight
90g

SKU CPRO-3D41GAME
Model # CPRO-3D41GAME
Brand Cypress
Shipping Weight 0.4100kg
