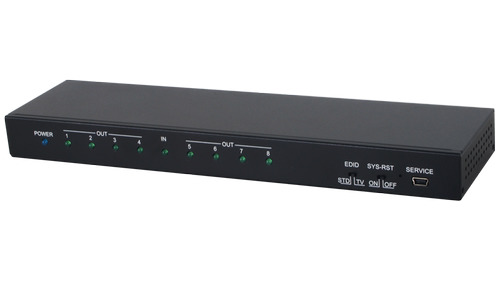

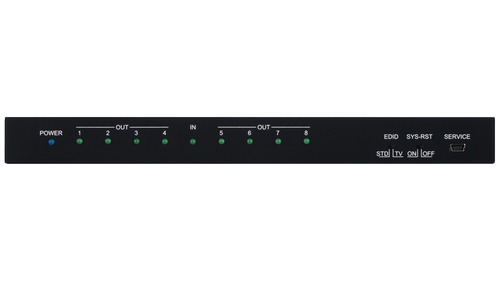

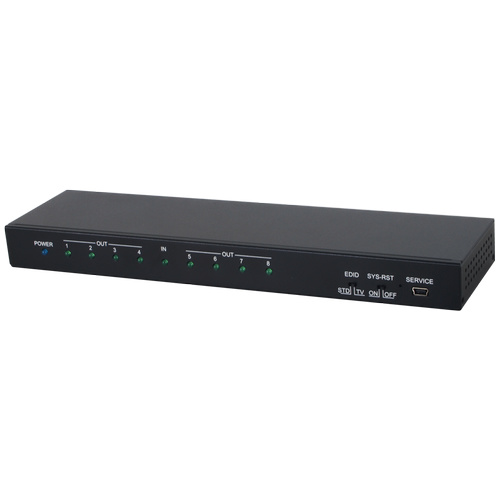

CPRO-U8T - 4K UHD 1×8 HDMI Splitter

This 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input to 8 HDMI outputs. This distribution amp provides a high level of audio and video performance with support for video resolutions up to 4K@60Hz (4:2:0) and high definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. Standard EDID management functionality is included and the System Reset function allows the unit to automatically change the input selection on any connected, CEC enabled, TVs to the input the unit is currently connected to.

(CPRO-U8T, QU-8MS)

(QU-8MS)

Specification

HDMI 2.0 and DVI 1.0 compliant
HDCP 1.4 compliant
1 HDMI input and 8 HDMI outputs
Supports HD resolutions up to 4096×2160@60Hz (4:2:0, 8-bit)
Simultaneous display of a single 4K source on up to eight 4K displays
3D signal support (with 3D source and compatible 3D TV)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
System Reset function (CEC active source command)
EDID management control including “Standard” (Internal EDID) mode and “TV” (External Display EDID) modes

Inputs	1x HDMI [1x Uncompressed AV and Data] 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs	8x HDMI [8x Uncompressed AV and Data]
PSU:	5V/2.6A
Dimensions	260mm [W] x 76mm [D] x 26mm [H]
Net Weight	488g
