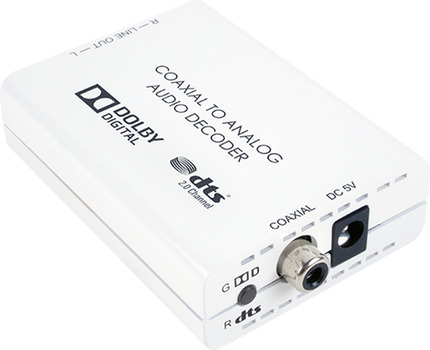

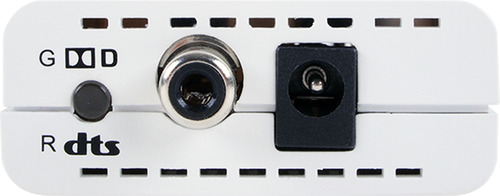

The Coaxial to Analog Audio Converter (DAC) with Dolby Digital & DTS 2.0 Decoder provides the ideal solution for converting an coaxial digital audio signal to analog stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital audio signals are down-mixed to analog stereo without loss of quality. This unit is perfect for use in computer audio systems or digital mixing consoles.

(DCT-1DD, AU-D5D)

(AU-D5D)

Specification
  • Supports coaxial digital audio signal input and conversion into analog audio signal L/R output
  • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
  • Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz
  • Supports Dolby Digital 5.1CH audio sampling rates up to 48 kHz
  • Supports Dolby Digital & DTS 2.0 audio downmixing to 2-channel audio
  • Supports S/PDIF bitstream 24-bit of data for the left and right channels
  • Compact, elegant design and easy to install
Inputs
1x RCA [1x 2 Channel LPCM / DTS / Dolby Digital]
Outputs
2x RCA [1x Stereo (L/R)]
PSU:
5V/1.2A
Dimensions
55mm [W] x 86mm [D] x 22mm [H]
Net Weight
42g

SKU DCT-1DD
Model # DCT-1DD
CYP EU Model # AU-D5D
Brand Cypress
Shipping Weight 0.2500kg
Downloads
