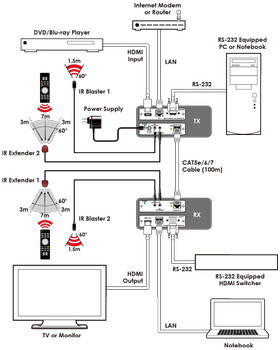

The CH-1507 transmitter and receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meters. It has the added benefit of control through the built-in RS-232 and IR ports and an LAN serving connection. The receiver (PD) can be powered by the PoH (48V) function of the transmitter (PSE), allowing for greater flexibility in installations.

(CH-1507RX, )

()

Specification
  • ​HDMI with 3D, 4K×2K support, HDCP and DVI compliant
  • Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
  • HDBaseT 5Play convergence: uncompressed high definition Video and Audio, LAN serving, Power over HDBaseT and RS-232/IR controls
  • Uncompressed video support up to 1080p@60 Hz/36-bit
  • High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Supports audio sampling rates of 32 kHz to 192 kHz
  • Supports standard 48V PoH power from Transmitter (PSE) to Receiver (PD)
  • Supports CEC bypass
  • Installation friendly
Inputs
1x RJ-45 [1x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Receiver]
Outputs
1x HDMI [1x Uncompressed AV and Data]
1x RJ-45 [1x LAN Serving]
1x 3.5mm [1x Infrared Emitter]
1x DE-9 [1x RS-232 Data]
PSU:
48V/0.83A
Dimensions
102mm [W] x 107mm [D] x 25mm [H]
Net Weight
262g

SKU CH-1507RX
Model # CH-1507RX
Brand Cypress
Shipping Weight 0.4650kg
