CH-501RX - HDMI over CAT5e/6/7 Receiver

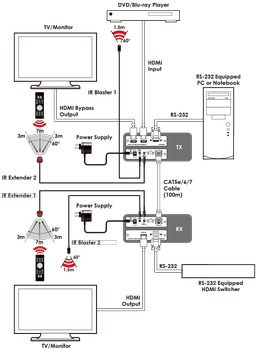

The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed HDMI video and audio can be transmitted over a single CAT5e/CAT6 with the added benefit of control through the built-in RS-232 and IR ports up to 100m. It also features a HDMI bypass function that allows for local testing of the HDMI source.

(CH-501RX, )

()

Specification

Supports HDMI with 3D and 4K2K support, HDCP and DVI compliant
Supports CEC bypass function
Simultaneous transmisson of uncompressed data up to 100 m/328 ft for CAT5e or CAT6 cable
Uncompressed video 1080p, 60 Hz, 36-bit
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
Various controls over HDMI, CEC, RS232 and IR
3Play convergence: HD video, audio & Control (IR & RS232)
Installation friendly

Inputs	1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Receiver]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Emitter] 1x DE-9 [1x RS-232 Data]
PSU:	5V/2.6A
Dimensions	102mm [W] x 107mm [D] x 25mm [H]
Net Weight	245g
