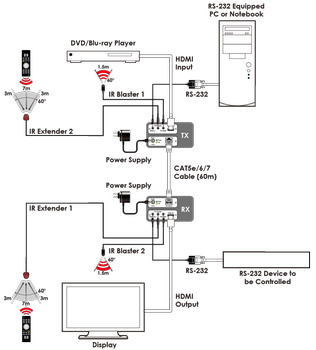

​This HDBaseT (Lite version of technology) HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.

(CH-506RXL, )

()

Specification
  • HDMI wit 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
  • Supports HDCP repeater and CEC functions
  • Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60 m/196 ft (1080p@60 Hz/8-bit), 40m (3D) or 20m (4K2K)
  • Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
  • Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • Supports HDBaseT Lite Technology including 2-Way IR and RS-232
  • Installation friendly
Inputs
1x RJ-45 [1x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Receiver]
Outputs
1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm [1x Infrared Emitter]
1x 3.5mm [1x RS-232]
PSU:
5V/2.6A
Dimensions
71mm [W] x 79mm [D] x 23mm [H]
Net Weight
245g

SKU CH-506RXL
Model # CH-506RXL
Brand Cypress
Shipping Weight 0.5900kg
