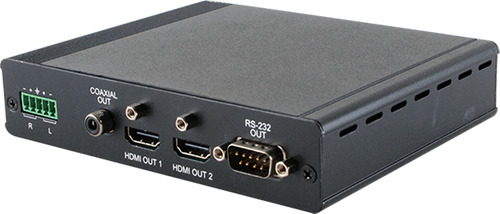

​ This splitter can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m. It has the added benefit of simultaneouse dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and IR control function The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations.

(CH-526RXPL, )


  • Supports full range HDTV and PC output resolutions up to 4K2K and WUXGA (RB)
  • Receive uncompressed data over a single 60m CAT5e/6/7 cable
  • 4Play™ convergence: Video, Audio, Bidirectional PoC & Control (IR & RS-232 bypass)
  • upports bidirectional IR, Remote control and RS-232 (bypass)
  • Provide with 24V DC power to or received from compatible PoC transmitter through CAT5e/6/7
  • Supports Balanced analog audio output (R/L) and HDMI input audio sampling rate up to 192kHz
  • Support coaxial digital audio up to 192kHz
1x RJ-45 [1x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Receiver]
1x USB Mini-B [1x SERVICE Propriety Data]
2x HDMI [2x Uncompressed AV and Data]
1x RCA [1x 2 Channel LPCM]
1x 3.5mm [1x Infrared Emitter]
1x DE-9 [1x RS-232 Data]
4x 1-Pin Terminal Block [1x Stereo (Balanced)]
145mm [W] x 128mm [D] x 30mm [H]
Net Weight

Model # CH-526RXPL
Brand Cypress
