​This HDBaseT (Lite version of technology) HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed video and audio over a single run of CAT5e/6/7 cable up to 60 meters (1080p) or 35 meters (4K×2K) with the added benefit of control through the built-in RS-232 and 2-way IR ports. The Power over Cable (PoC) function provides greater flexibility in installations.

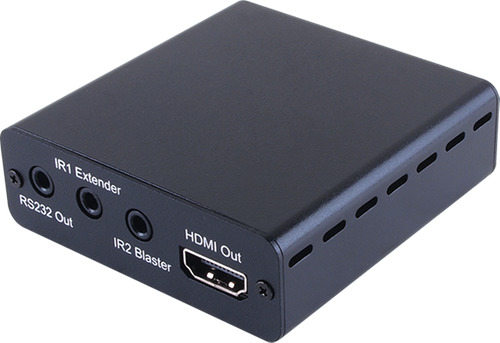

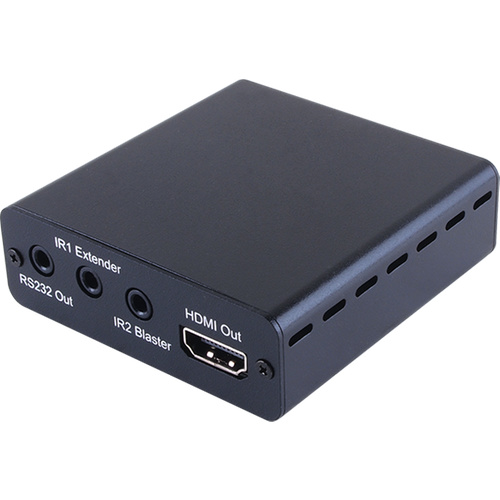

(CH-506RXPL, PU-515PL-RX)

(PU-515PL-RX)

Specification
  • HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
  • Supports HDCP repeater and CEC bypass functions
  • Supports HDBaseT Technology including 2-Way IR, RS-232 and Power over Cable (PoC)
  • Supports HD resolutions up to 1080p@60 Hz/36-bit and Ultra HD (4K×2K)
  • Supports transmission distance of up to 60 meters through CAT5e/6/7 cable (1080p) or 35 meters (4K×2K)
  • Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution and output up to 15 meters at 8-bit resolution and 10 meters at 12-bit resolution
  • RS-232 with baud rate up to 115200/sec
  • Supports wide range of IR frequency from 30 to 50 kHz
  • Audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Installation friendly

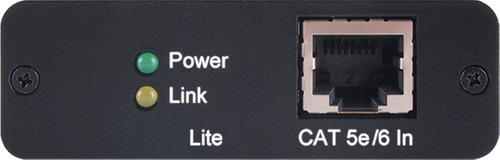

Inputs
1x RJ-45 [1x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Receiver]

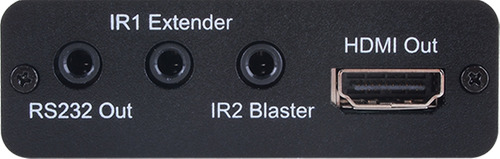

Outputs
1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm [1x Infrared Emitter]
1x 3.5mm [1x RS-232]
PSU:
5V/2.6A
Dimensions
71mm [W] x 79mm [D] x 23mm [H]
Net Weight
126g

SKU CH-506RXPL
Model # CH-506RXPL
CYP EU Model # PU-515PL-RX
Brand Cypress
Shipping Weight 0.5750kg
