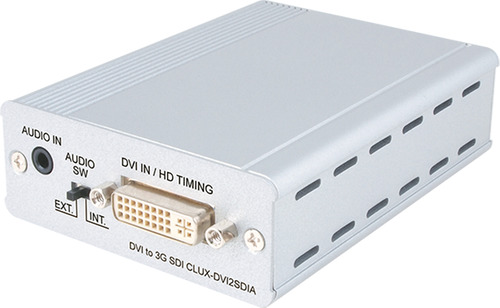

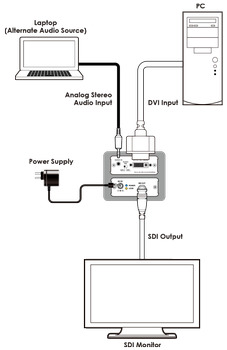

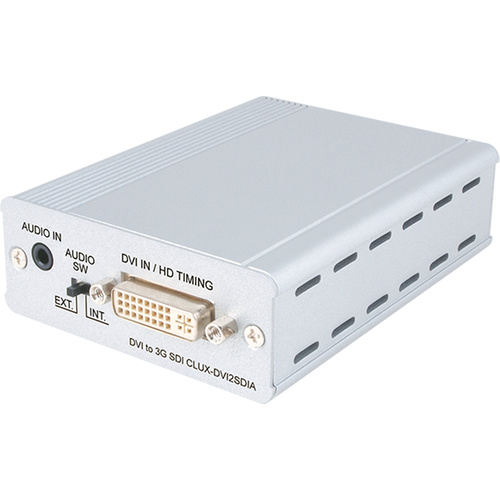

This unit allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition DVI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the DVI embedded audio, and send to the SDI output.

(CLUX-DVI2SDIA, )

()

Specification
  • Shows DVI source on SDI display
  • Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s
  • Converts DVI format to SDI:
    - 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s)
    - 720p/1080i to HD-SDI (SMPTE 292M,@1.485Gbit/s & 1.485/1.001Gbit/s)
    - 1080p to 3G-SDI (SMPTE 424M/[email protected]/s & 2.970/1.001Gbit/s)
  • Supports DVI input timings of [email protected], 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, [email protected]/24/25/29.97/30/50/59.94/60Hz
  • Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Inputs

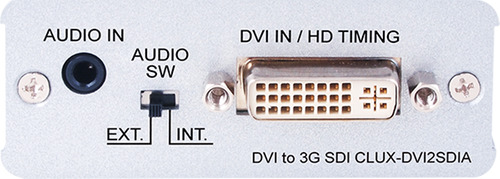

1x DVI-I [1x DVI-D]
1x 3.5mm [1x Stereo(L/R)]
Outputs

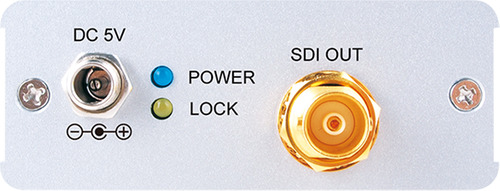

1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]
PSU:
5V/2.6A
Dimensions
78mm [W] x 124mm [D] x 30mm [H]
Net Weight
204g

SKU CLUX-DVI2SDIA
Model # CLUX-DVI2SDIA
Brand Cypress
Shipping Weight 0.4900kg
