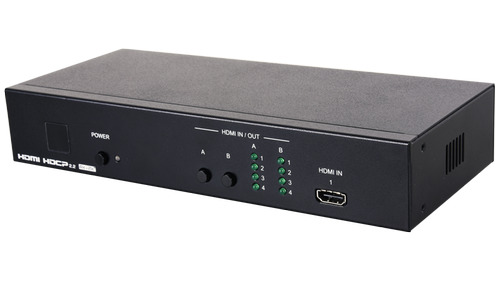

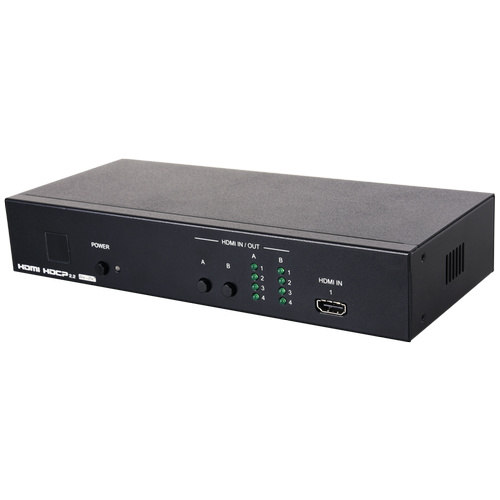

CPLUS-V4H2HP - 4K HDR 4×2 HDMI Matrix

This 4×2 HDMI Matrix allows the customer to route up to four 18Gbps HDMI input signals to any of two 18Gbps HDMI outputs. This unit supports 4K@60Hz (4:4:4), 16-bit Deep Color, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. Five pre-defined internal EDIDs and two external EDID options are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.

(CPLUS-V4H2HP, OR-42-4K22)

(OR-42-4K22)

Specification

HDMI 2.0 and DVI 1.0 compliant
HDCP 1.4 and 2.2 compliant
Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
Supports resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
Maximum data rate up to 18Gbps with Deep Color support up to 16-bit at 1080p
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
Supports EDID management via five pre-defined internal EDIDs and two external EDID options
Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote

Inputs	4x HDMI [4x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Receiver] 1x DE-9 [1x RS-232 Data] 1x RJ-45 [1x IP Control] 1x USB Type-A [1x SERVICE Propriety Data]
Outputs	2x HDMI [2x Uncompressed AV and Data]
PSU:	5V/2.6A
Dimensions	240mm [W] x 104mm [D] x 43mm [H]
Net Weight	796g
